MCE301 Silver HTPC Case

Details

A very sleek and stealthy design, the chiselled edges of this case hides everything a single door.

With a push of the oil damped eject, the user can gain access to the hidden optical drive and front IO ports, but once closed again, the door disappears into the imposing solid case front.

Like the other MCE3xx cases, this come with a VFD unit, further enhancing the home theatre look of your kit.

This is one the most understated and un-pretentious cases on the market, yet still manages to ooze quality.

Specifications

• Color: Silver
• Case Type: Desktop
• Dimension (metric): 429mm x 415mm x 105mm (height includes 12mm stand)
• Dimension (english): 16.88inch x 16.25in x 4.13in (height includes 0.45in stand)
• M/B Type: Micro ATX
• PSU Type: Standard ATX (not supplied)
• VFD Type: Samsung 2x16 Characters VFD
• Fan(s): 1 x 80mm on the side
• External 5.25" Bay: 1
• External 3.5" Bay: 0
• Internal 3.5" Bay: 2
• Expansion Slots: 4 - Low Profile Type
• Weight (Case Only): 5.44Kg / 12 Lbs

Packing List

• 1 x MCE301 Silver Case
• 1 x Samsung VFD Model: 16T202DA1E
• 1 x IR Trans USB Board w/ built-in RC6-compatible IR receiver
• 1 x IR Trans USB Board to Mainboard Power Cable
• 1 x IR Trans USB Board to Mainboard USB Cable
• 1 x IR Trans USB Board to Case Power Switch Relay Cable
• 1 x IR Trans USB Board to Mainboard Power Switch Cable

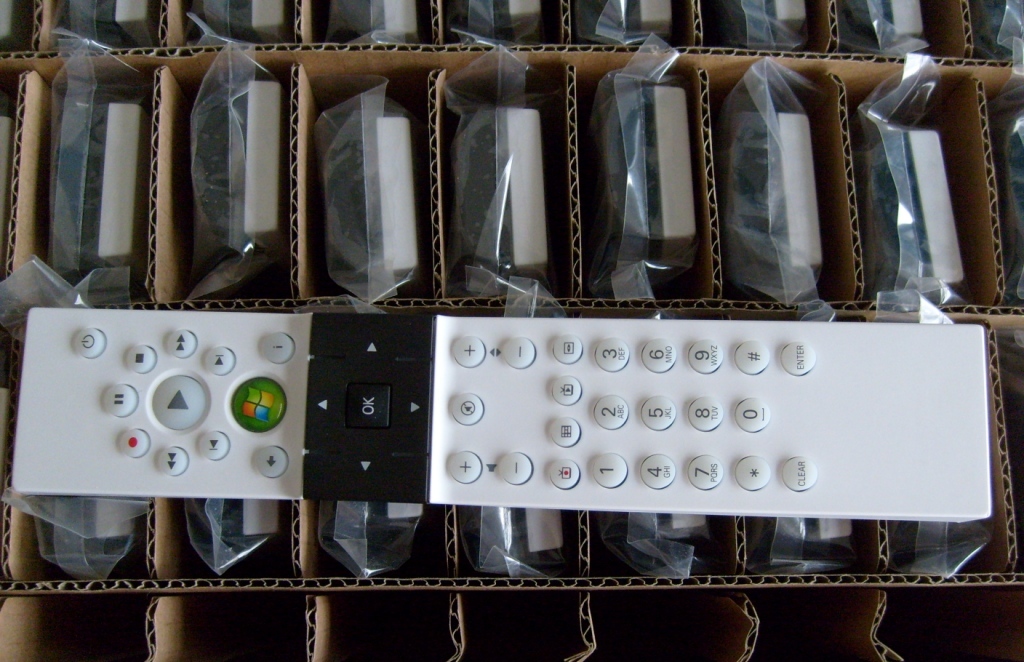

• 1 x Philips RC197 Media Center Remote Controller (See Picture)
• 1 x Installation CD
• 1 x Installation Manual
• 1 x Case Screw Set
• No Power Supply

Additional Pictures

• See our showcase
